SELF-PRIMING JET PUMPS

PRODUCT > GARDEN PUMP > SELF-PRIMING JET PUMPS

SELF-PRIMING JET PUMPS

    • 1
    • 2
    • 3

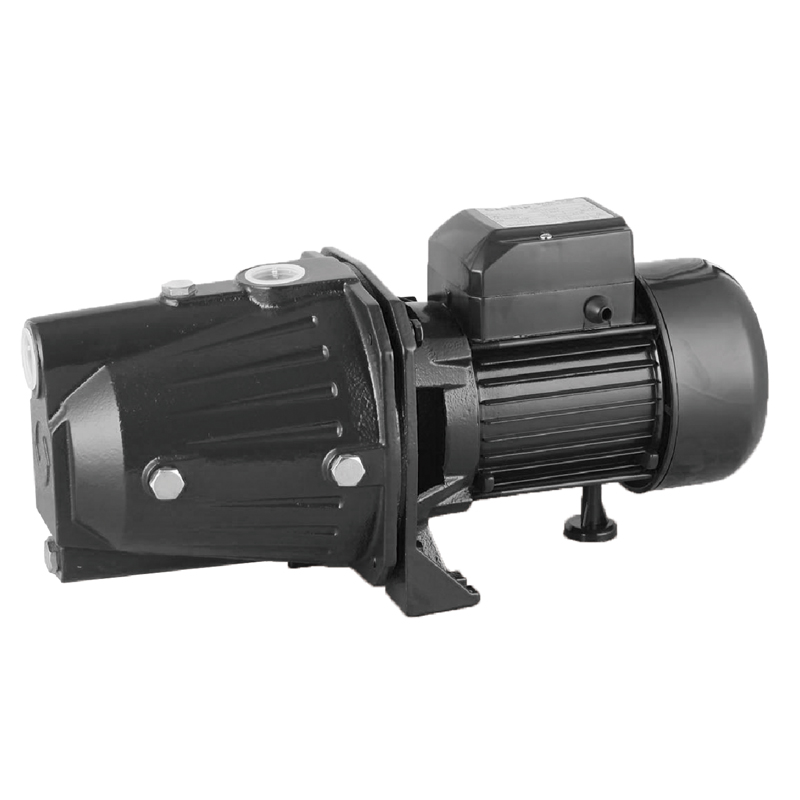

JET Series


With diffrent style of pump body and can meet your requirement of high flow rate and high head

FEATURES

The different type of Jet Pumps can meet your

different requirements and are suitable for lifting

water from the well, sprinkling irrigation in garden.

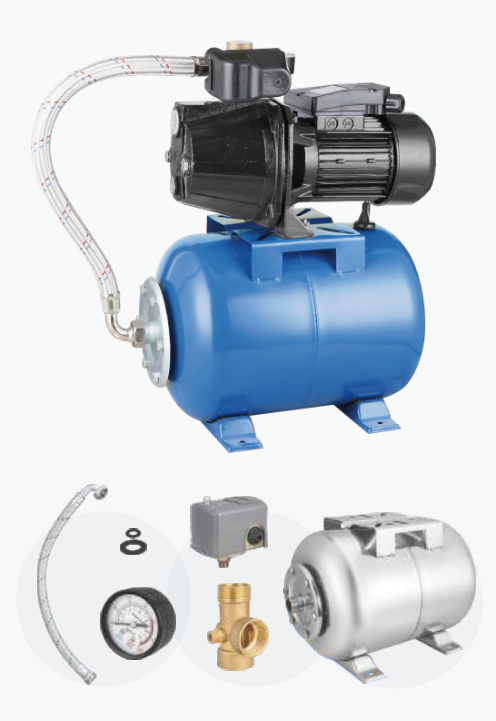

OPTION

TANK

Capacity: 19L/24L/50L

Membrane: EPDM

PRESSURE GAUGE

Scale: 0-6bar/0-10bar/0-12bar

Casing: Iron (Plastic is available)

Connector: Iron (Brass is available)

PRESSURE SWITCH

Model: PC-2

FLEX.HOSE

Diameter: Φ27MM

Material: Aluminum (Stainless steel is available)

Length: 50CM

Connector: 1＂×1＂

5 WAY CONNECTOR

Material: 100% brass

Weight: 170g/200g

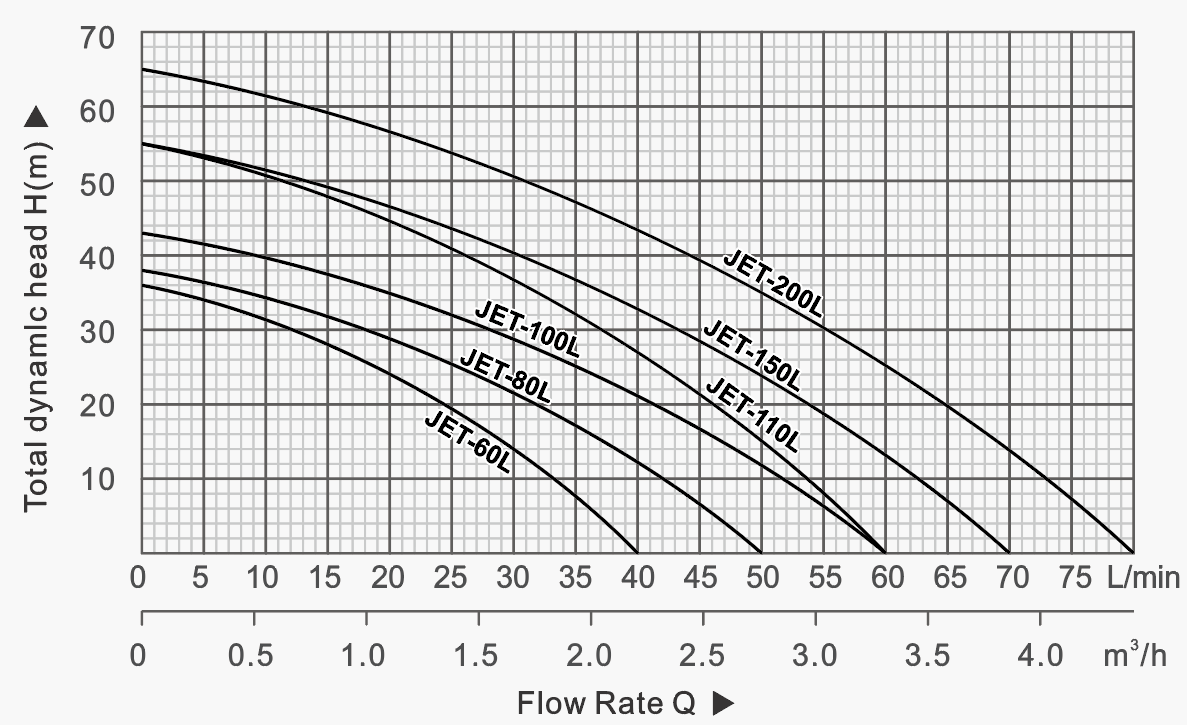

PERFORMANCE CHART AT N=2850rpm
